Optimal forecast reconciliation

---
class: title-slide
background-image: url("assets/titlebg.png")
background-position: 100% 50%
background-size: 100% 100%

.content-box-green-trans[
.pull-left-3[
![](assets/buaalogo.png)
]
.pull-right-3[
# Hierarchical time series forecasting

## with optimal forecast reconciliation

### Yanfei Kang

]]

---

---
class: center, hide-slide-number
background-image: url(figs/retail.jpeg)
background-size: cover

# Retail

![](figs/fr.png)

.content-box-green.left.bold[👍 Forecasts of such hierarchies support supply chain management and production planning (Syntetos, Babai, Boylan, Kolassa, and Nikolopoulos, 2016).]

---
class: center, hide-slide-number
background-image: url("figs/smart-meter.jpeg")
background-size: cover

# Smart meter

![](figs/fr-smart-meter.png)

.content-box-green.left.bold[👍 Forecasts of such hierarchies support optimal grid management and resource planning.]

---
# Aggregation constraints

.pull-left-1[
![](figs/simple-hierarchy.png)
Hierarchical series with linear constraints can be written as `$$\boldsymbol{y}_t = \boldsymbol{\color{Blue}{S}}\boldsymbol{\color{Red}{b_t}}.$$`
]

.pull-right-2[
`\begin{aligned}
\boldsymbol{y}_t  =\left(\begin{array}{c}
y_{\text {Total, }, t} \\
y_{A, t} \\
y_{B, t} \\
y_{C, t}
\end{array}\right)  =\color{Blue}{\underbrace{\left(\begin{array}{lll}
1 & 1 & 1\\
1 & 0 & 0 \\
0 & 1 & 0 \\
0 & 0 & 1
\end{array}\right)}_{\boldsymbol{S}}} \color{Red}{\underbrace{\left(\begin{array}{l}
y_{A, t} \\
y_{B, t} \\
y_{C, t}
\end{array}\right)}_{\boldsymbol{b_t}}}.
\end{aligned}`
]

---
# Aggregation constraints

.pull-left-1[

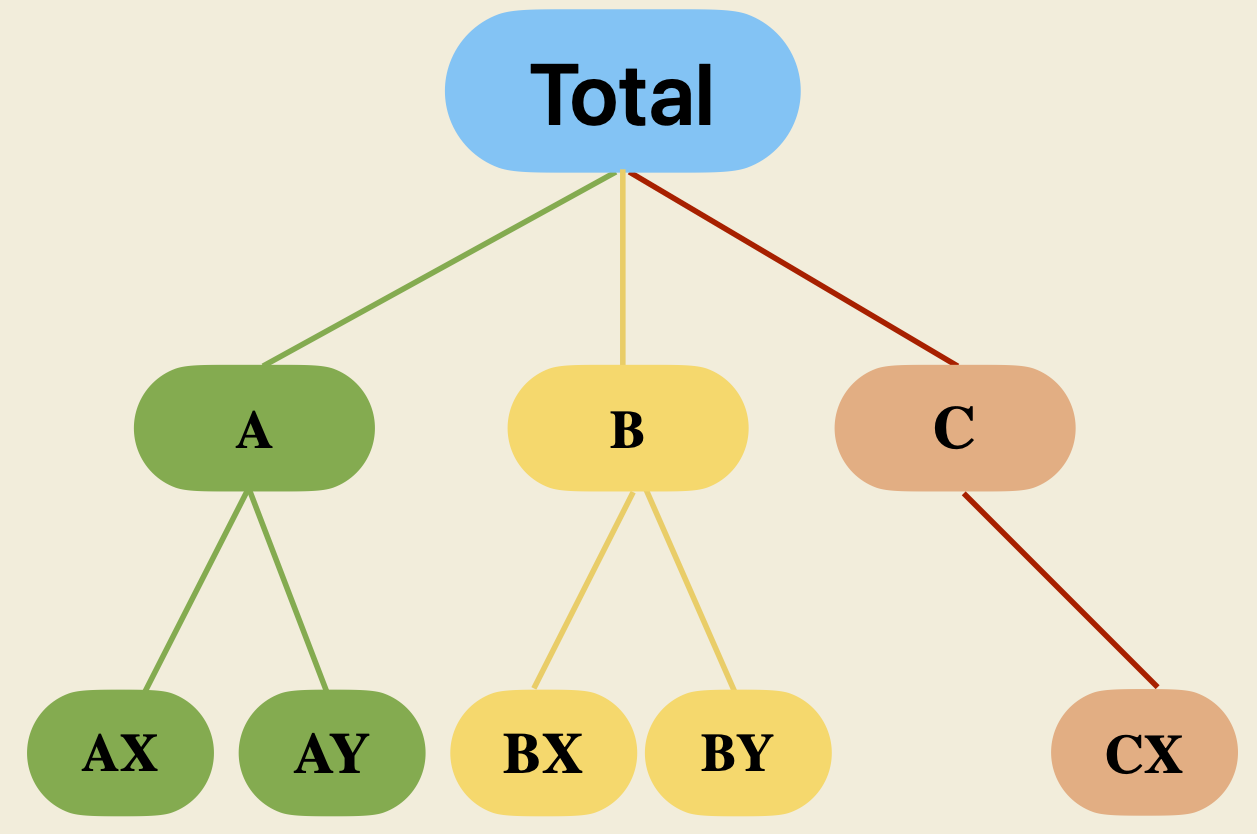

![](figs/complex-hierarchy.png)
Hierarchical series with linear constraints can be written as `$$\boldsymbol{y}_t = \boldsymbol{\color{Blue}{S}}\boldsymbol{\color{Red}{b_t}}.$$`
]

.pull-right-2[
`\begin{aligned}
\boldsymbol{y}_t  =\left(\begin{array}{c}
y_{\text {Total, }, t} \\
y_{A, t} \\
y_{B, t} \\
y_{C, t} \\
y_{AX, t} \\
y_{AY, t} \\
y_{BX, t} \\
y_{BY, t} \\
y_{CX, t}
\end{array}\right)
=\color{Blue}{\underbrace{\left(\begin{array}{lll}
1 & 1 & 1 & 1 & 1\\
1 & 1 & 0 & 0 & 0\\
0 & 0 & 1 & 1 & 0\\
0 & 0 & 0 & 0 & 1 \\
1 & 0 & 0 & 0 & 0\\
0 & 1 & 0 & 0 & 0\\
0 & 0 & 1 & 0 & 0\\
0 & 0 & 0 & 1 & 0\\
0 & 0 & 0 & 0 & 1
\end{array}\right)}_{\boldsymbol{S}}} \color{Red}{\underbrace{\left(\begin{array}{l}
y_{AX, t} \\
y_{AY, t} \\
y_{BX, t} \\
y_{BY, t} \\
y_{CX, t}
\end{array}\right)}_{\boldsymbol{b_t}}}.
\end{aligned}`
]

---

.white.font110[*(related work)*]
]]

---
# 📝 Problem

.pull-left[
- We need forecasts at all levels.
- Independent forecasts of all nodes will not add up.
- We need *coherent* forecasts.
]

]

1. Bottom up: ignores top nodes + noisy data at bottom level.
2. Top down: ignores bottom nodes + distribution of forecasts is hard.
]

---
# Forecast reconciliation

.center.content-box-gray[
❓ How to make coherent forecasts

using information from forecasts of **all nodes**?]

1. Generate forecasts of all variables in a hierarchy (known as *base* forecasts).
2. Then *reconcile* these to ensure they respect *aggregation constraints*.

]

---
# Notation

- `$\boldsymbol{\hat{y}}_{T+h|T}$`: `$h$`-step **base forecasts** (incoherent) stacked in an `$n$`-vector, made at time `$T$`. `$n$` is the number of series in the hierarchy.

.content-box-yellow[
Reconciled forecasts are of the form `$$\tilde{\boldsymbol{y}}_{T+h \mid T}=\boldsymbol{S} \boldsymbol{G} \hat{\boldsymbol{y}}_{T+h \mid T}$$` for some matrix `$\boldsymbol{G}$`.
]

- `$\boldsymbol{G}_{m\times n}$`: base forecasts `$\boldsymbol{\hat{y}}_{T+h|T}$` `$\Rightarrow$` bottom-level forecasts.

- `$\boldsymbol{S}_{n\times m}$`: bottom-level forecasts `$\Rightarrow$` forecasts for all levels.

- `$m$`: number of bottom level series.

---
# Forecast reconciliation

.content-box-yellow[
`$$\tilde{\boldsymbol{y}}_{T+h \mid T}=\boldsymbol{S} \boldsymbol{G} \hat{\boldsymbol{y}}_{T+h \mid T}.$$`
]

- If `$\hat{\boldsymbol{y}}$` is unbiased, then `$\tilde{\boldsymbol{y}}$` is unbiased iff  `$\boldsymbol{G}\boldsymbol{S} = \boldsymbol{I}_n$`.

- `$\boldsymbol{S}\boldsymbol{G}$` is projection matrix.

-  `$\boldsymbol{V}_h=\operatorname{Var}\left[\boldsymbol{y}_{T+h}-\tilde{\boldsymbol{y}}_{T+h \mid T} \mid \boldsymbol{y}_1, \ldots, \boldsymbol{y}_T\right]=\boldsymbol{S G W}_h \boldsymbol{G}^{\prime} \boldsymbol{S}^{\prime}.$`

- `$\boldsymbol{W}_h = \operatorname{Var}\left[\boldsymbol{y}_{T+h}-\hat{\boldsymbol{y}}_{T+h \mid T} \mid \boldsymbol{y}_1, \ldots, \boldsymbol{y}_T\right].$`

.center.content-box-gray[
Everything boils down to finding an optimal  `$\boldsymbol{G}$`.
]

---
# Minimum trace reconciliation

.content-box-yellow[
### Minimum trace (MinT) reconciliation (Shanika L. Wickramasuriya and Hyndman, 2019).
The  optimal `$\boldsymbol{G}$` that minimizes `$\operatorname{tr}(\boldsymbol{V}_h)$` such that   `$\boldsymbol{G}\boldsymbol{S} = \boldsymbol{I}_n$` is given by `$$\boldsymbol{G}=\left(\boldsymbol{S}^{\prime} \boldsymbol{W}_h^{-1} \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime} \boldsymbol{W}_h^{-1}.$$`
]

- Reconciled forecasts `$\boldsymbol{\tilde{y}}_{t+h|T}$` given by
`$\tilde{\boldsymbol{y}}_{t+h|T}=\boldsymbol{S}\left(\boldsymbol{S}^{\prime} \boldsymbol{W}_h \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime} \boldsymbol{W}_h \hat{\boldsymbol{y}}_{t+h|T}.$`

.center.content-box-gray[
❓ How to estimate `$\boldsymbol{W}_h=\text{Var}\left[\boldsymbol{y}_{T+h}-\hat{\boldsymbol{y}}_{T+h |T} | \boldsymbol{y}_1, \ldots, \boldsymbol{y}_T\right]$`?
]

---
# Choices of `$\boldsymbol{G}$`

Different choices of `$\boldsymbol{W}_h$` give rise to different methods.

| Reconciliation Method        | `$\boldsymbol{G}$`                               | `$\boldsymbol{W}_h$`                               |
| --------------- | -------------------------------------- |------------------ |
| OLS       | `$\left(\boldsymbol{S}^{\prime} \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime}$`   |    `$\boldsymbol{\hat W}_{\text{ols}} = k_h \boldsymbol{I}$`                 |
| WLS(var)     | `$\left(\boldsymbol{S}^{\prime} \boldsymbol{\Lambda}_{V}^{-1} \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime} \boldsymbol{\Lambda}_V^{-1}$`                         | `$\boldsymbol{\hat W}_{V} = k_h \text{diag}(\hat{\boldsymbol{W}}_1) = k_h \boldsymbol{\Lambda}_V$`                 |
| WLS(struct)    | `$\left(\boldsymbol{S}^{\prime} \boldsymbol{\Lambda}_S^{-1} \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime} \boldsymbol{\Lambda}_S^{-1}$`                       | `$\boldsymbol{\hat W}_{S} = k_h \text{diag}(\boldsymbol{S1}) = k_h \boldsymbol{\Lambda}_S$`                 |
| MinT(sample)   | `$\left(\boldsymbol{S}^{\prime} \hat{\boldsymbol{W}}_{\text {sam }}^{-1} \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime} \hat{\boldsymbol{W}}_{\text {sam }}^{-1}$`   | `$\boldsymbol{\hat W}_{\text{sam}} = k_h \hat{\boldsymbol{W}}_1$`               |
| MinT(shrink)       | `$\left(\boldsymbol{S}^{\prime} \hat{\boldsymbol{W}}_{\text {shr}}^{-1} \boldsymbol{S}\right)^{-1} \boldsymbol{S}^{\prime} \hat{\boldsymbol{W}}_{\text {shr}}^{-1}$`                | `$\boldsymbol{\hat{W}}_{\text{shr}} = \tau \text{diag}(\boldsymbol{\hat{W}_{\text{sam}}}) + (1-\tau)\boldsymbol{\hat{W}_{\text{sam}}}$`                 |

---
# With non-negativity

- MinT reconciliation also minimizes `$$(\tilde{\boldsymbol{y}}-\hat{\boldsymbol{y}})^{\prime} \boldsymbol{W}^{-1}(\tilde{\boldsymbol{y}}-\hat{\boldsymbol{y}}).$$`

- For data that cannot be negative, the minimization problem becomes

`\begin{aligned}
\underset{\boldsymbol{G}}{\min}\:(\hat{\boldsymbol{y}}-\tilde{\boldsymbol{y}})'\boldsymbol{W}^{-1}(\hat{\boldsymbol y}-\tilde{\boldsymbol{y}})\\
\textrm{s.t.}\:\:\tilde{\boldsymbol{b}}\geq 0.
\end{aligned}`

]

- Solved by quadratic programming (QP) using a block pivoting algorithm (Wickramasuriya, Turlach, and Hyndman, 2020).

---
# Your turn

1. Look into [tourism](https://tsibble.tidyverts.org/reference/tourism.html) data.

2. Go to **R**, and use **hts** package to forecast Australia tourism data.

3. Go to **Python**, and use **pyhts** to forecast
]

---
# Complex scenarios

.center.content-box-gray[
Classical forecast reconciliation methods do not necessarily work well in these complex scenarios.
]

1. Complex constraints `$\Rightarrow$` Reconciliation method that (automatically) keeps forecasts of a subset of variables immutable.

2. Complex continuous distributions `$\Rightarrow$` Reconciliation method suitable for any complex continuous distribution.

3. Complex discrete distributions `$\Rightarrow$` Reconciliation method suitable for discrete-valued data.

4. <span style="color: grey;">Complex structures `$\Rightarrow$` Reconciliation method that is robust in complex structures.</span>

---

.white.font110[*with immutable forecasts*]
]]

---
# Motivation

Forecast accuracy for individual variables may become `$worse$` after reconciling.

- **Judgemental forecasts:** forecasts of some key individual product lines are subject to careful judgemental adjustments by experts.

- **Intermittency:** reconciling forecasts of non-intermittent and intermittent series may deteriorate forecast accuracy in both.

- **New products:** no historical data, and thus no historical forecast errors.

- **Promotional events:** series with a long history have more information on promotional effects.
]

---
# Our work

We want to keep forecasts of a subset of variables **immutable**.

.content-box-yellow[
Find `$\boldsymbol{\tilde{y}}$` to minimise `$$(\tilde{\boldsymbol{y}}-\hat{\boldsymbol{y}})^{\prime} \boldsymbol{W}(\tilde{\boldsymbol{y}}-\hat{\boldsymbol{y}})$$`

subject to

1. Coherence constraints
2. Immutability constraints
3. Non negativity constraints

]

---
# Terminology and notation

| Term       | Notation                | Dimension               | Description                              |
| :--------------- | :--------------------------------------|:------------ |:------------------ |
| Full hierarchy | `$\boldsymbol{y}=\boldsymbol{(w',v',u')'}$` | `$n\times 1$` | All series. |
|     Basis | `$\boldsymbol{b}=\boldsymbol{(v',u')'}$`| `$m \times 1$` | Series used to define hierarchy, not necessarily the same as bottom level.|
| Immutable | `$\boldsymbol{u}$` | `$k\times 1$`| Series with forecasts that do not change after reconciliation.|
 |     Mutable | `$\boldsymbol{(w',v')'}$` | `$(m-k) \times 1$` | Series with forecasts that do change after reconciliation.|
 |     Non-basis | `$\boldsymbol{w}$` | `$(n-m) \times 1$` | Series that can be determined if values of basis level and constraints are known.|

---
# Aggregation constraints

The summing matrix can be partitioned as

`$$\boldsymbol{S} = \left(\begin{array}{ll}
\boldsymbol{S}_1 & \boldsymbol{S}_2 \\
    \boldsymbol{I}_{m-k} & \boldsymbol{0}_{(m-k)\times k} \\
    \boldsymbol{0}_{k \times (m-k)} & \boldsymbol{I}_{k}
\end{array}\right),$$`
where `$\boldsymbol{S}_1$` and `$\boldsymbol{S}_2$` are `$(n-m)\times (m-k)$` and `$(n-m)\times k$` matrices.

- Reconciled forecasts: `$\boldsymbol{\tilde y}=\boldsymbol{(\tilde w',\tilde v',\tilde u')'}$`.

- Aggregation constraint: `$\boldsymbol{\tilde{y} = S\tilde b} = \left(\begin{array}{c}\boldsymbol{S_1\tilde v + S_2 \tilde u} \\ \boldsymbol{\tilde v} \\ \boldsymbol{\tilde u}\end{array}\right)$` `$\Rightarrow$` `$\boldsymbol{\tilde w = S_1\tilde v + S_2 \tilde u}$`.

---
# Aggregation + Immutability

.content-box-yellow[

Reconciled forecasts are found as the solution to the optimisation problem:

`\begin{aligned}
  \min\limits_{\tilde{\boldsymbol{y}}} (\hat{\boldsymbol{y}} - \tilde{\boldsymbol{y}})^\prime \boldsymbol{W}^{-1}& (\hat{\boldsymbol{y}}-\tilde{\boldsymbol{y}}) \\
  \textrm{s.t.} \quad \tilde{\boldsymbol{u}} &= \hat{\boldsymbol{u}},\\
   \boldsymbol{S_1} \tilde{\boldsymbol{v}} + \boldsymbol{S}_2 \tilde{\boldsymbol{u}} &= \tilde{\boldsymbol{w}},
\end{aligned}`

]
.center[
`$\Downarrow$`
]

`$$\min\limits_{\tilde{\boldsymbol{v}}} (\check{\boldsymbol{\nu}} - \check{\boldsymbol{S}_1} \tilde{\boldsymbol{v}})^\prime \boldsymbol{W}_{\boldsymbol{\nu}}^{-1}(\check{\boldsymbol{\nu}} - \check{\boldsymbol{S}_1} \tilde{\boldsymbol{v}})$$`

---
# Aggregation + Immutability

`$${\check{\boldsymbol{S}}_1} = \left[\begin{array}{c}
  \boldsymbol{S}_1 \\
  \boldsymbol{I}_{m-k}
\end{array}\right], \check{\boldsymbol{\nu}} = \left[\begin{array}{c}
  \hat{\boldsymbol{w}} - \boldsymbol{S}_2 \hat{\boldsymbol{u}} \\
  \hat{\boldsymbol{v}}
\end{array}\right],$$`
and `$\boldsymbol{W}_{\boldsymbol{\nu}}^{-1}$` consists of rows and columns corresponding to mutable series in `$\boldsymbol{W}^{-1}$`.
]

---
# Aggregation + Immutability

`$$\tilde{\boldsymbol{v}} = (\check{\boldsymbol{S}}_1^\prime\boldsymbol{W}_{\boldsymbol{\nu}}^{-1}\check{\boldsymbol{S}}_1)^{-1}\check{\boldsymbol{S}}_1^\prime\boldsymbol{W}_{\boldsymbol{\nu}}^{-1}\check{\boldsymbol{\nu}}.$$`

]

- Denote `$\hat{\boldsymbol{G}}_1 = (\check{\boldsymbol{S}}_1^\prime\boldsymbol{W}_{\boldsymbol{\nu}}^{-1}\check{\boldsymbol{S}}_1)^{-1}\check{\boldsymbol{S}}_1^\prime\boldsymbol{W}_{\boldsymbol{\nu}}^{-1}$`. Then we have

`$$\tilde{\boldsymbol{b}} = \left[\begin{array}{c}\tilde{\boldsymbol{v}} \\ \hat{\boldsymbol{u}}\end{array}\right]=\left[\begin{array}{c}
    \hat{\boldsymbol{G}}_1 & \boldsymbol{0}_{(m-k)\times k} \\
    \boldsymbol{0}_{k \times (n-k)} & \boldsymbol{I}_{k}
  \end{array}\right]\left(\boldsymbol{I}_n - \left[\begin{array}{c}
    \boldsymbol{0}_{(n-m)\times (n-k)} & \boldsymbol{S}_2 \\
    \boldsymbol{0}_{m\times (n-k)} & \boldsymbol{0}_{m\times k}
  \end{array}\right]\right)\left[\begin{array}{c}
    \hat{\boldsymbol{w}} \\
    \hat{\boldsymbol{v}} \\
    \hat{\boldsymbol{u}}
  \end{array}\right]   = \hat{\boldsymbol{G}}\hat{\boldsymbol{y}}.$$`

- The **unbiased** reconciled forecasts of the hierarchy can be obtained through `$\tilde{\boldsymbol{y}} = \boldsymbol{S}\tilde{\boldsymbol{b}} = \boldsymbol{S}\hat{\boldsymbol{G}}\hat{\boldsymbol{y}}$`.

---
# Aggregation + Immutability + Non-negativity

- Our proposed method for immutable forecasts can be combined with non-negative reconciliation, then the optimisation problem is
`\begin{aligned}
\min\limits_{\tilde{\boldsymbol{v}}} (\check{\boldsymbol{\nu}} - \check{\boldsymbol{S}_1} \tilde{\boldsymbol{v}})^\prime \boldsymbol{W}_{\boldsymbol{\nu}}^{-1}(\check{\boldsymbol{\nu}} - \check{\boldsymbol{S}_1} \tilde{\boldsymbol{v}}) \\
\textrm{s.t.}  \quad \check{\boldsymbol{S}}_1\check{\boldsymbol{v}} \geq \boldsymbol{d},
\end{aligned}`
where `$\boldsymbol{d} = [-\boldsymbol{S}_2\hat{\boldsymbol{u}} \quad \boldsymbol{0}]'$`.

- This quadratic programming problem has a unique global solution and can be solved by **quadprog** package for **R**.

- For high dimensions, use the block principal pivoting (BPV) algorithm or scaled gradient projection algorithm to accelerate the solution (Wickramasuriya, Turlach, and Hyndman, 2020).

---
# Forecasting sales data from Alibaba

.pull-left-1[
- Three levels.
  - Top: Food sales.
  - Middle: 40 categories.
  - Bottom: 1905 items.
- Many are intermittent.
- Several spikes each year.
]

.pull-right-2[
<center>
<img src="figs/total_sale.jpg" height="300px"/>
</center>
.font50[This is supported by Alibaba Group through the Alibaba Innovative Research Program.]
]

--
.center.content-box-gray[
🙇 Aim is to forecast sales during **eight promotional events** (11.11, New year, 3.8, Anniversary, 6.18, Summer, 8.8, and 8.9) from the end of 2020 to 2021-09-12 using observations starting from 2019-01-01.
]

---
# Set up

- Intermittent series (at least 60% of zeros in the last two months): simple exponential smoothing.
- Others: regression model with ARIMA errors (promotion strength as a predictor) and Box Cox transformation.

- Top level.
- Intermittent series.
- Series with longer histories (more than 1 year).

---
# Forecasting results (MASE, `$WLS_v$`)
.font130[
| <div style="width:290px">Level</div>        | <div style="width:150px">Base</div>                              | <div style="width:150px">C</div>  |<div style="width:150px">CN</div>  | <div style="width:150px">CI</div> | <div style="width:150px">CIN</div>       |
|:--------------------------------------- | ---------------:|---------------:|---------------:|--------------------:|---------------:|
|Top (I) | 2.94 | 2.75 | 2.77 | 2.94 | 2.94 |
| Middle (M) | 2.66|2.39|2.40|2.43|2.47|
|Bottom(M) | 2.04|1.86|1.83|1.97|1.88|
|Intermittent(I) | 0.11|1.52|1.52|0.11|0.11|
|Longer(I) | 1.08|1.58|1.19|1.08|1.08|
]

- "C" and "CN" shows improvements in the Top (I), Middle (M) and Bottom (M) levels, also leading to a severe deterioration in  Intermittent (I)  and Longer(I).

- "CI" improves forecast accuracy for mutable series, without an associated decrease in accuracy for immutable series. "CIN" performs even better.

---
# Automation of immutable series selection

### A heuristic method based on clustering

- Clustering Round 1: perform `$k$`-means clustering for level `$l$`, with `$k_l = \frac{1}{2} \times n_l$`, where `$n_l$` is the number of series in level `$l$`. Within each cluster, select the series with higher historical base forecasting accuracy.

- Clustering Round 2: denote the selected series set in Round 1 as `$\mathcal{S}$`, and perform clustering with `$k$` determined by Gap statistic. In each cluster, select the series with the highest historical base forecasting accuracy as the immutable nodes.

---
# Automation of immutable series selection

### An optimisation method

- Step 1: Determine the basis time series using subset selection method by Wang, Hyndman and Wickramasuriya (2024).

- Step 2: Rewrite the summing and weighting matrices as `$\boldsymbol G^*$` and `$\boldsymbol S^*$`. Determine immutable series by the following optimisation problem:
`\begin{aligned}
\min_{\boldsymbol{G}^*, ~\boldsymbol{A}} \quad  & \frac{1}{2} (\hat{\boldsymbol y} - \boldsymbol{S^* G^* y})^T \boldsymbol{W}^{-1} (\hat{\boldsymbol y} - \boldsymbol{S^* G^* y}) + \lambda_0 \sum_{j=1}^{m} \boldsymbol{A}_{jj},  \\
\text{s.t.} \quad & \boldsymbol{G^* S^* = I},\\
& \boldsymbol{G^* = (I - A) \check{G}} + \begin{pmatrix} \boldsymbol{0}_{m \times (n-m)} & \boldsymbol{I_m} \end{pmatrix},
\end{aligned}`
where `$\boldsymbol A$` is a diagonal matrix indicating immutable nodes. `$a_{ii} = 1$` means that the `$i$`-th row of `$\boldsymbol{(I - A) \check{G}}$` is zeroed out.

---
# Forecasting Australian tourism
### A clustering method (RMSE)
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Level </th>
   <th style="text-align:left;"> Type </th>
   <th style="text-align:right;"> Base </th>
   <th style="text-align:right;"> OLS </th>
   <th style="text-align:right;"> WLSs </th>
   <th style="text-align:right;"> WLSv </th>
   <th style="text-align:right;"> MinT (shrinkage) </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> 1 </td>
   <td style="text-align:left;"> 1939.96 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> 1978.88 </td>
   <td style="text-align:right;"> 2316.67 </td>
   <td style="text-align:right;"> 2435.68 </td>
   <td style="text-align:right;"> 2311.33 </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 2 </td>
   <td style="text-align:left;"> 417.06 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> 408.96 </td>
   <td style="text-align:right;"> 449.99 </td>
   <td style="text-align:right;"> 466.2 </td>
   <td style="text-align:right;"> 449.67 </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> <b>407.24</b> </td>
   <td style="text-align:right;"> <b>413.62</b> </td>
   <td style="text-align:right;"> <b>420.95</b> </td>
   <td style="text-align:right;"> <b>419.19</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 3 </td>
   <td style="text-align:left;"> 174.2475 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> <b>159.21</b> </td>
   <td style="text-align:right;"> 165.62 </td>
   <td style="text-align:right;"> 168.75 </td>
   <td style="text-align:right;"> <b>164.92</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> 161.22 </td>
   <td style="text-align:right;"> <b>162.06</b> </td>
   <td style="text-align:right;"> <b>167.19</b> </td>
   <td style="text-align:right;"> 165.59 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 4 </td>
   <td style="text-align:left;"> 90.54 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> <b>87.46</b> </td>
   <td style="text-align:right;"> 88.67 </td>
   <td style="text-align:right;"> <b>88.93</b> </td>
   <td style="text-align:right;"> <b>87.94</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> 87.9 </td>
   <td style="text-align:right;"> <b>88.36</b> </td>
   <td style="text-align:right;"> 89.47 </td>
   <td style="text-align:right;"> 89.94 </td>
  </tr>
</tbody>
</table>

---
# Forecasting Australian tourism
### An optimisation method (RMSE)

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Level </th>
   <th style="text-align:left;"> Type </th>
   <th style="text-align:right;"> Base </th>
   <th style="text-align:right;"> OLS </th>
   <th style="text-align:right;"> WLSs </th>
   <th style="text-align:right;"> WLSv </th>
   <th style="text-align:right;"> MinT (shrinkage) </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> 1 </td>
   <td style="text-align:left;"> 1939.96 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> 1978.88 </td>
   <td style="text-align:right;"> 2316.67 </td>
   <td style="text-align:right;"> 2435.68 </td>
   <td style="text-align:right;"> 2311.33 </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
   <td style="text-align:right;"> <b>1939.96</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 2 </td>
   <td style="text-align:left;"> 417.06 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> 408.96 </td>
   <td style="text-align:right;"> 449.99 </td>
   <td style="text-align:right;"> 466.2 </td>
   <td style="text-align:right;"> 449.67 </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> <b>405.2</b> </td>
   <td style="text-align:right;"> <b>408.47</b> </td>
   <td style="text-align:right;"> <b>420.35</b> </td>
   <td style="text-align:right;"> <b>410.79</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 3 </td>
   <td style="text-align:left;"> 174.2475 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> 159.21 </td>
   <td style="text-align:right;"> 165.62 </td>
   <td style="text-align:right;"> 168.75 </td>
   <td style="text-align:right;"> 164.92 </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> <b>158.72</b> </td>
   <td style="text-align:right;"> <b>158.48</b> </td>
   <td style="text-align:right;"> <b>161.35</b> </td>
   <td style="text-align:right;"> <b>158.72</b> </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 4 </td>
   <td style="text-align:left;"> 90.54 </td>
   <td style="text-align:right;"> U </td>
   <td style="text-align:right;"> 87.46 </td>
   <td style="text-align:right;"> 88.67 </td>
   <td style="text-align:right;"> 88.93 </td>
   <td style="text-align:right;"> 87.94 </td>
  </tr>
  <tr>
   <td style="text-align:left;">  </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> C </td>
   <td style="text-align:right;"> <b>87.35</b> </td>
   <td style="text-align:right;"> <b>87.57</b> </td>
   <td style="text-align:right;"> <b>87.49</b> </td>
   <td style="text-align:right;"> <b>86.63</b> </td>
  </tr>
</tbody>
</table>

---

.white.font110[*for complex continuous distributions*]
]]

---
# Motivation

- Times series from different levels exhibit various distributions, which are often non-normal or non-parametric.

- MinT only considers the covariance matrix of the forecast distributions, neglecting other information such as their shapes.

- We propose a forecast reconciliation method suitable for any complex continuous distribution.

- We obtain coherent point forecasts and probabilistic forecasts by maximizing the energy score (ES) of the reconciled forecasts.

---
# Reconciliation method for complex continuous distributions

- Core idea: find the closest coherent point to the base forecast distributions.

- We use ES (Energy Score) to measure the distance:

`$$\text{ES}(\hat{\boldsymbol f}, \boldsymbol y) = \frac{1}{2} \left[ \mathbb{E}_{\hat {\boldsymbol f}} \left| \boldsymbol Y - \boldsymbol Y' \right|^\beta - \mathbb{E}_{\hat {\boldsymbol f}} \left| \boldsymbol Y - \boldsymbol y \right|^\beta \right],$$`
which can be estimated by sampling from `$\hat{\boldsymbol f}$` via copula methods.

- ES is typically used to evaluate forecast distributions. Here we assume forecast distributions are given, we find coherent points in the supports of these distributions with the largest ES.

---
# Reconciled point forecasts

We get reconciled point forecasts by finding the closest coherent point to the base forecast distributions:
`\begin{aligned}
&\max_{\boldsymbol{\tilde b}} \text{ES}(\hat{\boldsymbol f}, \boldsymbol{S\tilde b}) \\ \Rightarrow &\max_{\boldsymbol{\tilde b}} \left[ \frac{1}{N} \sum_{i=1}^N \left[ \frac{1}{2} \left| \boldsymbol{y}^{[i]} - \hat{\boldsymbol{y}}^{[i]} \right|^\beta - \left| \boldsymbol{y}^{[i]} - \boldsymbol{S\tilde b} \right|^\beta \right] \right] \\ \Rightarrow &\min_{\boldsymbol{\tilde b}} \left[ \frac{1}{N} \sum_{i=1}^N \left| \boldsymbol{y}^{[i]} - \boldsymbol{S\tilde b} \right|^\beta \right].
\end{aligned}`

---
# An intuitive example

.pull-right[
- Normal distribution + log-normal distribution.
- Reconciled forecasts using MinT for two heavy-tailed variables tend to shift towards the tail.
- Proposed method keeps the reconciled forecasts close from the median of base forecasts.
]

---
# Reconciled probabilistic forecasts
To obtain reconciled probabilistic forecasts, for each sample from the base forecast distributions `$\hat{\boldsymbol{y}}^{[i]}$`, we optimise
`\begin{aligned}
&\max_{\boldsymbol{\tilde b}^{[i]}} \text{ES}(\hat{\boldsymbol f}, \boldsymbol{S\tilde b}^{[i]}) - \alpha \left\| \hat{\boldsymbol{y}}^{[i]} - \boldsymbol{S\tilde b}^{[i]} \right\|^\beta \\
\Rightarrow & \max_{\boldsymbol{\tilde b}^{[i]}} \left[ \frac{1}{N} \sum_{j=1}^N \left( \frac{1}{2} \left\| \hat{\boldsymbol{y}}^{[j]} - \hat{\boldsymbol{y}}_{[j]} \right\|^\beta - \left\| \hat{\boldsymbol{y}}^{[j]} - \boldsymbol{S\tilde b}^{[i]} \right\|^\beta - \alpha \left\| \hat{\boldsymbol{y}}^{[i]} - \boldsymbol{S\tilde b}^{[i]} \right\|^\beta \right) \right] \\
\Rightarrow & \min_{\boldsymbol{\tilde b}^{[i]}} \left[ \frac{1}{N} \sum_{j \neq i} \left\| \hat{\boldsymbol{y}}^{[j]} - \boldsymbol{S\tilde b}^{[i]} \right\|^\beta + \frac{N \alpha + 1}{N} \left\| \hat{\boldsymbol{y}}^{[i]} - \boldsymbol{S\tilde b}^{[i]} \right\|^\beta \right].
\end{aligned}`
This means we find the closest coherent point near the sample that maximise ES.
---
# Forecasting household electricity consumption in a region of the UK

- Data: [semi-hourly household electricity usage data](https://www.ofgem.gov.uk/energy-policy-and-regulation/policy-and-regulatory-programmes/energy-demand-research-project-edrp) from the East Midlands region of the UK.

- 5 levels: NUTS, NUTS1, NUTS2, NUTS3, NUTS4, and the bottom level, which respectively contain 1, 3, 11, 40, and 1582 time series.

- Setup: kernel density estimation method for bottom level forecasting, and TBATS to forecast other levels.

---
# Forecasting household electricity consumption in a region of the UK

### Point forecasting (MAE)

| Method            | NUTS  | NUTS1 | NUTS3 | NUTS4 | Bottom |
|-------------------|-------|-------|-------|-------|------|
| Base    | 33.87 | 11.30 | 3.02  | **1.21**  | 0.11 |
| Bottom-Up         | 35.97 | 11.90 | 3.70  | 1.26  | 0.11 |
| MinT (Variance)   | 30.07 | 11.48 | 3.59  | 1.38  | 0.11 |
| ES       | **28.98** | **10.75** | **3.34**  | 1.22  | **0.11** |

---
# Forecasting household electricity consumption in a region of the UK
### Probabilistic forecasting (CRPS)

| Method            | NUTS  | NUTS1 | NUTS3 | NUTS4 | Bottom |
|-------------------|-------|-------|-------|-------|------|
| Base    | 24.38 |  7.64 |  **1.91** |  **0.80** | 0.08 |
| Bottom-Up         | 37.92 | 11.77 |  2.90 |  0.94 | 0.08 |
| MinT (Variance)   | 20.44 |  **6.91** |  2.22 |  0.89 | 0.08 |
| ES      | **19.67** |  7.00 |  1.99 |  0.83 | **0.07** |

---

.white.font110[*for discrete distributions*]
]]

---
# Motivation

- Reconciliation approaches are mostly designed for continuous-valued HTS.

- Projection may produce non-integer and negative forecasts.

---
# An example

- `$Y_3 = Y_1 + Y_2,$` where `$Y_1$` and `$Y_2$` are binary.

- Assume their forecasts are distributed as

| Value  | `$\hat y_3$`  | `$\hat y_1$`  | `$\hat y_2$`  |
|-----|-----|-----|-----|
| 0   | 0.1 | 0.1 | 0.1 |
| 1   | 0.3 | 0.9 | 0.9 |
| 2   | 0.6 | 0   | 0   |

- Under independence, `$P(Y_1 = 0, Y_2=1, Y_3=0) = 0.1 \times 0.9 \times 0.1 = 0.009$`, which assigns non-zero probability to an incoherent point.

- We construct the coherent distribution by assigning mass from incoherent points to coherent points in the predictive distribution.

---
# DFR: discrete forecast reconciliation

- `$q$`-dimensional base forecasts: `$\hat{\boldsymbol{\pi}} = [P(Y_1 = 0, Y_2 = 0, Y_3 = 0), P(Y_1 = 1, Y_2 = 0, Y_3 = 0), \dots]'.$`

- `$r$`-dimensional reconciled forecasts: `$\tilde{\boldsymbol{\pi}} = [P(Y_1 = 0, Y_2 = 0, Y_3 = 0), P(Y_1 = 1, Y_2 = 0, Y_3 = 1), \dots]'.$`

- `$\tilde{\boldsymbol\pi} = \boldsymbol{A}\hat{\boldsymbol{\pi}},$` where `$\boldsymbol{A}=[a_{ij}], \text{with}~\sum_{j=1}^r a_{ij} = 1, \quad 0 \leq a_{ij} \leq 1, \quad i = 1, \ldots, r, \quad j = 1, \ldots, q.$`

---
# An example of `$A$`

- `$\boldsymbol{A}$` proportionally assigning the probability of each point in incoherent domain to points in the coherent domain.

- Assignment restriction: the probability is only assigned to the closest coherent points.

- An example of `$A$`:

![](./figs/A.png)

---
# DFR: discrete forecast reconciliation

- By minimising the average Brier Score of `$\tau$` reconciled forecasts, we can find the optimal reconciliation matrix.

`\begin{aligned}
          &\min_{A}\frac{1}{\tau}\sum_{t=1}^{\tau}(\mathbf{A}\hat{\boldsymbol{\pi}}_t - \mathbf{z}_t)'(\mathbf{A}\hat{\boldsymbol{\pi}}_t - \mathbf{z}_t) \\
          =&\min_{a_{ij}}\frac{1}{\tau}\left[\sum_{i=1}^r\left(\sum_{j=1}^q a_{ij}\hat\pi_{jt} - z_i^t\right)^2\right] \\
          & \text{s.t.}  \sum_{i=1}^r a_{ij} = 1, 0\leq a_{ij} \leq 1.
\end{aligned}`

-  This is a standard quadratic programming problem.
---
# Forecasting criminal offenses in Washington, D.C.

- We take [the data at a census tract level](https://crimecards.dc.gov/.) resulting in 231 weekly time series.

- Two-level temporal hierarchies: weekly (bottom) and monthly (top).

![](./figs/MCB.png)

---
# Conclusions

1. Complex constraints `$\Rightarrow$` Reconciliation method that (automatically) keeps forecasts of a subset of variables immutable.

2. Complex continuous distributions `$\Rightarrow$` Reconciliation method suitable for any complex continuous distribution.

3. Complex discrete distributions `$\Rightarrow$` Reconciliation method suitable for discrete-valued data.

4. <span style="color: grey;">Complex structures `$\Rightarrow$` Reconciliation method that is robust in complex structures.</span>

---
background-image: url("assets/titlepage_buaa.png")
background-position: 100% 50%
background-size: 100% 100%

.font300.bold[
**Thanks!**
]
<br>
<br>
<br>
.content-box-gray.font160[
<svg aria-hidden="true" role="img" viewBox="0 0 496 512" style="height:1em;width:0.97em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#1da1f2;overflow:visible;position:relative;"><path d="M165.9 397.4c0 2-2.3 3.6-5.2 3.6-3.3.3-5.6-1.3-5.6-3.6 0-2 2.3-3.6 5.2-3.6 3-.3 5.6 1.3 5.6 3.6zm-31.1-4.5c-.7 2 1.3 4.3 4.3 4.9 2.6 1 5.6 0 6.2-2s-1.3-4.3-4.3-5.2c-2.6-.7-5.5.3-6.2 2.3zm44.2-1.7c-2.9.7-4.9 2.6-4.6 4.9.3 2 2.9 3.3 5.9 2.6 2.9-.7 4.9-2.6 4.6-4.6-.3-1.9-3-3.2-5.9-2.9zM244.8 8C106.1 8 0 113.3 0 252c0 110.9 69.8 205.8 169.5 239.2 12.8 2.3 17.3-5.6 17.3-12.1 0-6.2-.3-40.4-.3-61.4 0 0-70 15-84.7-29.8 0 0-11.4-29.1-27.8-36.6 0 0-22.9-15.7 1.6-15.4 0 0 24.9 2 38.6 25.8 21.9 38.6 58.6 27.5 72.9 20.9 2.3-16 8.8-27.1 16-33.7-55.9-6.2-112.3-14.3-112.3-110.5 0-27.5 7.6-41.3 23.6-58.9-2.6-6.5-11.1-33.3 2.6-67.9 20.9-6.5 69 27 69 27 20-5.6 41.5-8.5 62.8-8.5s42.8 2.9 62.8 8.5c0 0 48.1-33.6 69-27 13.7 34.7 5.2 61.4 2.6 67.9 16 17.7 25.8 31.5 25.8 58.9 0 96.5-58.9 104.2-114.8 110.5 9.2 7.9 17 22.9 17 46.4 0 33.7-.3 75.4-.3 83.6 0 6.5 4.6 14.4 17.3 12.1C428.2 457.8 496 362.9 496 252 496 113.3 383.5 8 244.8 8zM97.2 352.9c-1.3 1-1 3.3.7 5.2 1.6 1.6 3.9 2.3 5.2 1 1.3-1 1-3.3-.7-5.2-1.6-1.6-3.9-2.3-5.2-1zm-10.8-8.1c-.7 1.3.3 2.9 2.3 3.9 1.6 1 3.6.7 4.3-.7.7-1.3-.3-2.9-2.3-3.9-2-.6-3.6-.3-4.3.7zm32.4 35.6c-1.6 1.3-1 4.3 1.3 6.2 2.3 2.3 5.2 2.6 6.5 1 1.3-1.3.7-4.3-1.3-6.2-2.2-2.3-5.2-2.6-6.5-1zm-11.4-14.7c-1.6 1-1.6 3.6 0 5.9 1.6 2.3 4.3 3.3 5.6 2.3 1.6-1.3 1.6-3.9 0-6.2-1.4-2.3-4-3.3-5.6-2z"/></svg> [github.com/kl-lab](https://github.com/kl-lab)

]
