# Why numerical linear algebra?

- Difference between linear algebra and **applied** linear algebra.

- Think about linear algebra in Statistics.

- In curve fitting.

- In image processing.

- In signal processing.

- etc.

- **We need to know numerical techniques!**

---
# What we will learn in this lecture

- Eigenanalysis

- SVD

---
class: inverse, center, middle
# Eigenanalysis

---
# Eigenanalysis

- In general, a matrix acts on a vector by changing both its magnitude and its direction.

- However, a matrix may act on certain vectors by changing only their magnitude, and leaving their direction unchanged (or reversing it).
    - these vectors are the eigenvectors of the matrix
    - the scaling factor is the eigenvalue.

---
# Eigenanalysis

- What if `$\mathbf{A}$` is not a square matrix?

- How to find its eigenvalues and eigenvectors?

- If `$\mathbf{A}$` is a real symmetric matrix
    - Only real eigenvalues
    - `$n$` distinct linearly independent eigenvectors
    - pairwise orthogonal
    - `$\mathbf{A = Q\Lambda Q^T}$`

- When `$A$` is diagonalisable?

- If a diagonalisation doesn't exist, there is always a triangularisation via Schur Decomposition: `$\mathbf{A = QSQ^T}$`.

- Let us revisit together the properties of eigenvalues and eigenvectors.

---
# What does eigenanalysis help to do?

- Let's try to understand what `$\mathbf{Ax} = \lambda \mathbf{x}$` is really asking.

- Can we find a pair of `$\lambda$` and `$\mathbf{x}$` such that when a matrix `$\mathbf{A}$` is applied to `$\mathbf{x}$`, it doesn't change the direction and just scales the vector?

- If we can find such a pair, then everytime we do something with `$\mathbf{Ax}$` in some mathematical operation, we can replace it with `$\lambda \mathbf{x}$`.

---
# What does eigenanalysis help to do?

- Consider `$\mathbf{A} = \left(\begin{array}{cc}5 & -1\\-2 & 4 \end{array}\right)$` and `$\mathbf{x} = \left(\begin{array}{c}1 \\-1 \end{array}\right)$`.

- What if we now want to calculate `$\mathbf{A^{20}x}$`?

- What if we now want to calculate `$\mathbf{A^{-1}x}$`?

---
# Advantages of eigenanalysis

- It enables us to replace a matrix with a scalar when we have the opportunity to change our coordinate system to the eigenvectors of a matrix.

- We can express any vector in terms of this new coordinate system.

- We can use the fact that `$\mathbf{Ax} = \lambda \mathbf{x}$` to simplify calculations.

---
# Application of Eigenanalysis: Google

---
# How to know page rank?

- How does the search engine know which pages are the most important?

- Google assigns a number to each individual page, expressing its importance.

- This number is known as the PageRank and is computed via the eigenvalue problem `$Aw = \lambda w$`, where `$A$` is based on the link structure of the Internet.

---
# Google's pagerank

- Suppose we have a set of webpages `$W$`, with `$|W|=n$` as the number of webpages.

- We define a connectivity (adjacency) matrix `$A$` as follows:
`$$A_{i j}:=\left\{\begin{array}{ll}
1 / N_{i} & \text{if Page } i \text{ links to  Page } j, \\
0 & \text { otherwise.}
\end{array}\right.$$`
where `$N_i$` is the number of outlinks on Page `$i$`.

- Typically `$A$` is huge (27.5 billion x 27.5 billion in 2011), but extremely sparse (lots of zero values)

---
# A small example

.pull-right[
The connectivity matrix is
`$$A =\left(\begin{array}{lllll}
0 & 1/3 & 0 & 1/3 & 1/3 \\
0 & 0 & 1/3 & 1/3 & 1/3 \\
1/2 & 0 & 0 & 1/2 & 0 \\
0 & 0 & 0 & 0 & 1 \\
0 & 0 & 1 & 0 & 0
\end{array}\right)$$`
]

---
# A small example

- The underlying idea for PageRank: a page is important, if other important pages link to it.

- The ranking of page `$i$` is proportional to the weighted sum of the rankings of all pages that link to `$i$`: `$r_4 = \frac{1}{3}r_1 + \frac{1}{3}r_2 + \frac{1}{2}r_3$`.

- So this is a system of `$n = 5$` linear equations (please write it out).

- The ranking vector is treated like a probability of relevance, so we
need to then rescale so that `$\Sigma_{i=1}^n r_i = 1.$`

- Go to R and compute page ranks in this example.

---
# What you need to realise for now

- Finding the eigenvalues and eigenvectors of a massive matrix is computationally challenging though (don’t try to solve the characteristic polynomial!)

- And you will learn numerical techniques later.

---
# Further readings

[Google's pagerank](https://yanfei.site/docs/bsc/pagerank.pdf).

---
class: inverse, center, middle
# Singular Value Decomposition (SVD)

---
# Non-square matrices

- Recall that if the matrix A is square (real or complex) then a diagonalisation may exist.
    - This is clearly very useful for easy calculation of many important problems as we saw last week.
    - If a diagonalisation doesn't exist, then there is always a triangularisation via Schur Decomposition.

- But non-square matrices don’t have eigenvalues, so what can we do?

- You are about to learn the most useful diagonal decomposition that works for all matrices: Singular Value Decomposition.

---
#  Singular values

- Singular values are the square roots of the eigenvalues of `$A^TA$` which is square and symmetric.

-  `$u$` and `$v$` come in a pair for each
singular value `$\sigma$`, such that `$$A v = \sigma u.$$`

- `$u$` and `$v$` are eigenvectors of `$AA^T$` and `$A^TA$`, respectively.

---
#  Generalising Eigen-Decomposition

- Eigendecomposition involves only one eigenvector for each eigenvalue (including multiplicities), stored in an orthogonal matrix `$Q$`, with eigenvalues on the diagonal of the matrix `$\Lambda$`, so that `$A=Q\Lambda Q^T$`.

- We can generalise this now that we have singular vectors `$u$` and `$v$` for each singular value `$\sigma$`.

---
# Singular Value Decomposition (SVD)

For `$A \in \mathcal{R}^{m \times n}$`, there exists orthogonal matrices
`$$U = [u_1, \cdots, u_m] \in \mathcal{R}^{m\times m}$$` and
`$$V = [v_1, \cdots, v_n] \in \mathcal{R}^{n\times n}$$`
such that
`$$U^TAV = \Sigma = \text{diag}\{\sigma_1, \cdots, \sigma_p\} \in \mathcal{R}^{m\times n},$$`
with `$p = \min\{m, n\}$` and `$\sigma_1 \geq \dots \geq \sigma_p \geq 0$`.

Rearranging, we have `$$A = U\Sigma V^T$$`.

---
# SVD

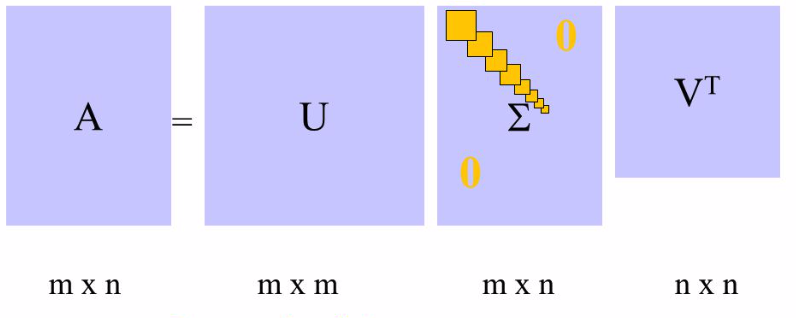

![](https://sthalles.github.io/assets/svd-for-regression/full-svd-matrices.png)

---
# SVD

Try `svd()` in R.

---
# Some properties of SVD

- `$\sigma_i$` are singular values of `$A$`.

- The non-zero singular values of `$A$` are the square roots of the non-zero eigenvalues of both `$A^TA$` and `$AA^T$`.

- The rank of a matrix is equal to the number of non-zero singular values.

- The condition number measures the degree of singularity of `$A^TA$`:
`$$\kappa = \frac{\text{max singular value}}{\text{min singular value}}.$$`

---
# Applications of SVD

- In data compression, we start with a matrix A that contains perfect data, and we try to find a (lower-rank) approximation to the data that seeks to capture the principal elements of the data.
     - we sacrifice only the less important parts that don’t degrade data quality too much, in order to gain compression.
- In noise filtering, we start with a matrix A that contains imperfect data, and we try to find a (lower-rank) approximation to the data that seeks to capture the principal elements of the data.
     - we give up only the less important parts that are typically noise.
- So both these tasks are related, and rely on the SVD to find a suitable lower-ranked approximation to a matrix.

---
class: inverse, center, middle
# Matrix Approximation

---
# Economy SVD

The SVD of a matrix `$A$` in `$\mathcal{R}_{m\times n}$` decomposes the matrix into `$$A = U\Sigma V^T = \left(\begin{array}{cc}U_1 & U_2\end{array}\right) \left(\begin{array}{cc} D & \\& 0\end{array}\right) \left(\begin{array}{cc}V_1^T & V_2^T\end{array}\right) = U_1DV_1^T$$`
where `$D = \text{diag}\{\sigma_1, \cdots, \sigma_r\} \in \mathcal{R}^{r\times r}$` with `$\sigma_r > 0$` for `$r = \text{rank}(A)$`.

---
# Economy SVD

![](https://sthalles.github.io/assets/svd-for-regression/economy-svd-matrices.png)

---
# Matrix Approximation

- `$A$` can also be expressed as a sum of outer products, with each sum being a rank 1 matrix of dimension `$m\times n$`
`$$A = \Sigma_{i = 1}^r \sigma_i u_i v_i^T = \sigma_1 u_1 v_1^T + \cdots + \sigma_r u_r v_r^T.$$`

- We can truncate this sum when we feel that the singular values are so small that they are not contributing much.

---
# Image Compression

- Suppose we have a grayscale image (*128 x 128* pixels).
    - We can use a matrix to represent this image.

- If we have a colour image, it has three matrices, with the same size as the image. Each matrix represents a color value that comprises the RGB color scale.

- Each pixel is represented by an integer from 0-255.

- Next, we can decompose the matrix by SVD.

- By eliminating small singular values, we can approximate the matrix.
    - Choose the value of `$k$` for the low-rank approximation `$A_k$`.
    - Plotting the singular values might help identify where there is a noticeable drop in significance.

---
# Reconstructing approximated image

- Suppose we have chosen the value of `$k$` = number of singular values we wish to retain. - We can generate a new image matrix by expanding `$A$` using the SVD (first `$k$` singular values only).

- If you want to use colour images, do it for R, G, B matrices separately and then reassemble.

---
# Data compression

``` r
library(jpeg)
img <- readJPEG('./figs/svdimg.jpg')
r <- img[,,1]
g <- img[,,2]
b <- img[,,3]
img.r.svd <- svd(r)
img.g.svd <- svd(g)
img.b.svd <- svd(b)
# Function to reconstruct the image with a limited number of singular values
reconstruct_image <- function(svd_r, svd_g, svd_b, k) {
  # Reconstruct the individual color channels using the first k singular values
  r_reconstructed <- svd_r$u[, 1:k] %*% diag(svd_r$d[1:k]) %*% t(svd_r$v[, 1:k])
  g_reconstructed <- svd_g$u[, 1:k] %*% diag(svd_g$d[1:k]) %*% t(svd_g$v[, 1:k])
  b_reconstructed <- svd_b$u[, 1:k] %*% diag(svd_b$d[1:k]) %*% t(svd_b$v[, 1:k])

  # Clip the values to be within the valid range [0, 1]
  r_reconstructed <- pmin(pmax(r_reconstructed, 0), 1)
  g_reconstructed <- pmin(pmax(g_reconstructed, 0), 1)
  b_reconstructed <- pmin(pmax(b_reconstructed, 0), 1)

  # Combine the channels back into a single image
  reconstructed_image <- array(0, dim = c(dim(r)[1], dim(r)[2], 3))
  reconstructed_image[,,1] <- r_reconstructed
  reconstructed_image[,,2] <- g_reconstructed
  reconstructed_image[,,3] <- b_reconstructed

  return(reconstructed_image)
}
# Set the number of singular values to test
singular_values <- seq(5,200,10)

# Loop over different k values and plot the reconstructed images
for (k in singular_values) {
  reconstructed <- reconstruct_image(img.r.svd, img.g.svd, img.b.svd, k)
  plot(1, type = "n", xlab = "", ylab = "", xlim = c(0, 1), ylim = c(0, 1),
       axes = FALSE, ann = FALSE, frame.plot = FALSE)
  rasterImage(reconstructed, 0, 0, 1, 1)
  title(paste("Reconstructed Image with", k, "Singular Values"))
}

```
]

---
# Data compression
<img src="figure/unnamed-chunk-1-.gif" width="504" style="display: block; margin: auto;" />

---
class: inverse, center, middle
# Linear regression

---
# Linear regression

For a linear regression,
`$$\mathbf{y} = \mathbf{X}\mathbf{\beta} + \mathbf{\varepsilon},~\mathbf{\epsilon}\sim N(0,\Sigma).$$`
what is its OLS solution?

---
#  Numerical Issues

- Numerically, there can be problems with solving for `$\mathbf{\beta}$` via the normal equations.
    - The inverse of `$X^TX$` might not exist
    - It is not computationally efficient to invert it for large dimensions
    - `$X^TX$` maybe ill-conditioned

- The SVD can help us by providing a numerically stable pseudo-inverse, and the opportunity to identify (through the singular values) any ill-conditioning.

---
# Pseudo-inverse

Recall that the SVD of a matrix `$A$` in `$\mathcal{R}_{m\times n}$` decomposes the matrix into `$$A = U\Sigma V^T = \left(\begin{array}{cc}U_1 & U_2\end{array}\right) \left(\begin{array}{cc}D & \\& 0\end{array}\right) \left(\begin{array}{cc}V_1^T & V_2^T\end{array}\right) = U_1DV_1^T$$`
where `$D = \text{diag}\{\alpha_1, \cdots, \alpha_r\} \in \mathcal{R}^{r\times r}$` with `$\sigma_r > 0$` for `$r = \text{rank}(A)$`.

- The pseudo-inverse, or generalised inverse, of `$A$` can always be calculated, even if
`$A$` is not invertible.
`$$A^+ = V_1D^{-1}U_1^T$$`
- `$A^{+}$` is `$n \times m$`.

---
# Linear regression with SVD

For `$$y = \mathbf{X}\mathbf{\beta} + \mathbf{\varepsilon},~\mathbf{\epsilon}\sim N(0,\Sigma),$$`
the least square solution is
`$$\beta = (X^TX)^{-1}X^Ty.$$`
Substituting `$X = U_1DV_1^T$`,
`$$\beta = X^{+}y = V_1D^{-1}U_1^T y = \Sigma_{i = 1}^r \frac{v_iu_i^Ty}{\sigma_i}.$$`
A small singular value means trouble. A lower rank approximation should be more reliable.

---
# Lets go back to our example in L0

- For example, here's a fake dataset of `$n=5000$` observations with `$p=100$` predictors.

``` r
set.seed(2023-09-08)
n <- 5000; p <- 100
X <- matrix(rnorm(n * p), n, p)
y <- rnorm(n)
```

``` r
library(microbenchmark)
microbenchmark(solve(t(X) %*% X) %*% t(X) %*% y,
               solve(crossprod(X), crossprod(X, y)),
               qr.coef(qr(X), y)
)
#> Unit: milliseconds
#>                                  expr      min       lq     mean   median       uq       max neval
#>      solve(t(X) %*% X) %*% t(X) %*% y 65.75119 70.86994 80.80969 73.01452 77.33103 280.50736   100
#>  solve(crossprod(X), crossprod(X, y)) 29.94246 31.34255 32.80172 32.09785 33.21004  52.39252   100
#>                     qr.coef(qr(X), y) 42.44848 45.33337 53.21804 47.92239 50.79790 255.11060   100
```

---
#  Colinearity

``` r
W <- cbind(X, X[, 1] + rnorm(n, sd = 0.00000000000001))
solve(crossprod(W), crossprod(W, y))
#> Error in solve.default(crossprod(W), crossprod(W, y)): system is computationally singular: reciprocal condition number = 1.392e-16
```

---
#  We can use SVD and pseudo-inverse

``` r
# Perform SVD on W
svd_W <- svd(W)

# Extract components from SVD
U <- svd_W$u        # m x m matrix
D <- svd_W$d        # Singular values (vector)
V <- svd_W$v        # n x n matrix

# Define a threshold to filter out small singular values
threshold <- 1e-10

Positive <- D > threshold

# Calculate ginv
W_ginv <- V[, Positive, drop = FALSE] %*% ((1/D[Positive]) * t(U[, Positive, drop = FALSE]))

# You can also use
# W_ginv <- MASS::ginv(W)

```

---
#  We can use SVD and pseudo-inverse

``` r
# Estimation
W_ginv %*% y
#>                 [,1]
#>   [1,]  0.0103524802
#>   [2,] -0.0107798798
#>   [3,] -0.0053346446
#>   [4,] -0.0139042768
#>   [5,] -0.0165625816
#>   [6,] -0.0247368954
#>   [7,] -0.0055936520
#>   [8,] -0.0050670925
#>   [9,] -0.0141895452
#>  [10,]  0.0014650371
#>  [11,]  0.0105871852
#>  [12,]  0.0236855005
#>  [13,] -0.0009123881
#>  [14,]  0.0395699043
#>  [15,] -0.0045459668
#>  [16,]  0.0156426008
#>  [17,]  0.0368986437
#>  [18,] -0.0062241571
#>  [19,]  0.0003719454
#>  [20,] -0.0001045447
#>  [21,]  0.0105437196
#>  [22,]  0.0032069072
#>  [23,] -0.0099112962
#>  [24,]  0.0092091722
#>  [25,] -0.0056283760
#>  [26,] -0.0101836666
#>  [27,]  0.0004409933
#>  [28,]  0.0079016686
#>  [29,]  0.0101626882
#>  [30,] -0.0208409039
#>  [31,] -0.0054924536
#>  [32,]  0.0064271925
#>  [33,] -0.0065590754
#>  [34,] -0.0037863800
#>  [35,]  0.0072126283
#>  [36,] -0.0013686652
#>  [37,] -0.0261588414
#>  [38,] -0.0045260288
#>  [39,] -0.0204600332
#>  [40,] -0.0108791075
#>  [41,]  0.0100509988
#>  [42,]  0.0021846634
#>  [43,]  0.0096076628
#>  [44,] -0.0256744385
#>  [45,] -0.0002072185
#>  [46,] -0.0203092434
#>  [47,]  0.0199490920
#>  [48,]  0.0245456994
#>  [49,]  0.0141368132
#>  [50,] -0.0075821183
#>  [51,] -0.0331999816
#>  [52,]  0.0070728928
#>  [53,] -0.0251681102
#>  [54,] -0.0145501245
#>  [55,]  0.0124959304
#>  [56,]  0.0101724169
#>  [57,] -0.0041669575
#>  [58,]  0.0118368027
#>  [59,]  0.0058702645
#>  [60,]  0.0017322817
#>  [61,]  0.0008573064
#>  [62,] -0.0068535688
#>  [63,] -0.0101274630
#>  [64,] -0.0093643459
#>  [65,]  0.0045194364
#>  [66,] -0.0224489607
#>  [67,]  0.0175468581
#>  [68,]  0.0135508696
#>  [69,]  0.0048772551
#>  [70,]  0.0168445216
#>  [71,] -0.0254587733
#>  [72,] -0.0012700923
#>  [73,] -0.0106302388
#>  [74,] -0.0017762102
#>  [75,]  0.0077490915
#>  [76,]  0.0110904920
#>  [77,] -0.0144777066
#>  [78,] -0.0079745076
#>  [79,]  0.0112005231
#>  [80,] -0.0012697611
#>  [81,] -0.0024046193
#>  [82,] -0.0094265032
#>  [83,]  0.0234028545
#>  [84,] -0.0087827166
#>  [85,]  0.0097232715
#>  [86,] -0.0188332734
#>  [87,] -0.0151177605
#>  [88,]  0.0129435368
#>  [89,] -0.0086064316
#>  [90,]  0.0048073761
#>  [91,] -0.0209634872
#>  [92,] -0.0133873152
#>  [93,]  0.0203494525
#>  [94,]  0.0031885641
#>  [95,] -0.0088269877
#>  [96,]  0.0064179865
#>  [97,] -0.0016902431
#>  [98,] -0.0149829401
#>  [99,] -0.0018118949
#> [100,] -0.0161594580
#> [101,]  0.0103524802
```
]
